LED Chip Brand : philips/Bridgelux/
Input Volage : AC100-240V 50/60Hz
Light Efficiency : >110m/W
Color Temperature : 3000K/4500K/6000K
Operating Temperature : -40℃ ±60℃
Warranty : 3years
Power Factor : >0.9
Color Rendering Index(Ra) : >70
Viewing Angle :
IP Grade : IP65
Material : Aluminium
MOSO/Meanwell/Sosen
Urban roads and highways
Parking areas
Residential or industrial areas
Parks and commercial areas
Model 型號 |
Power 功率 |
Lamp 封裝 |
Luminous Flux 光通量 |
Packing(cm) 包裝尺寸 |
GW/N(kgs) 毛重/凈重 |
Installation height 安裝高度 |
---|---|---|---|---|---|---|

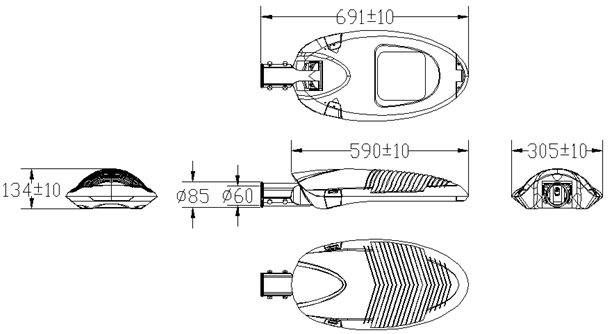

CY-LZM120W | 120W | SMD | 1200 | 691×305×135mm | 9.5/7.8 | 8-10M |
CY-LZM200W | 200W | SMD | 20000 | 830×385×172mm | 14.5/12.5 | 9-12M |
