LED Chip Brand : philips/Bridgelux/
Input Volage : AC100-240V 50/60Hz
Light Efficiency : >110m/W
Color Temperature : 3000K/4500K/6000K
Operating Temperature : -40℃ ±60℃
Warranty : 3years
Power Factor : >0.9
Color Rendering Index(Ra) : >70
Viewing Angle :
IP Grade : IP65
Material : Aluminium
MOSO/Meanwell/Sosen
Urban roads and highways
Parking areas
Residential or industrial areas
Parks and commercial areas
Model 型號 |
Power 功率 |
Lamp 封裝 |
Luminous Flux 光通量 |

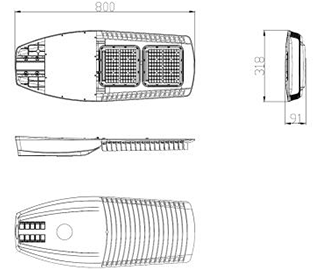

Packing(cm) 包裝尺寸 |
GW/N(kgs) 毛重/凈重 |
Installation height 安裝高度 |
---|---|---|---|---|---|---|
CY-LZM180W | 180W | SMD | 18000 | 715×270×94 | 6.0/5.5 | 8-10M |
CY-LZM200W | 200W | SMD | 20000 | 800×318×91 | 6.4/6.2 | 9-12M |
CY-LZM240W | 240W | SMD | 24000 | 800×318×91 | 7.6/8.6 | 12-13M |
