LED Chip Brand : philips/Bridgelux/
Input Volage : AC100-240V 50/60Hz
Light Efficiency : >100m/W
Color Temperature : 3000K/4500K/6000K
Operating Temperature : -40℃ ±60℃
Warranty : 3years
Power Factor : >0.9
Color Rendering Index(Ra) : >70
Viewing Angle :
IP Grade : IP65
Material : Aluminium
Driver Brand : MOSO/Meanwell/Sosen

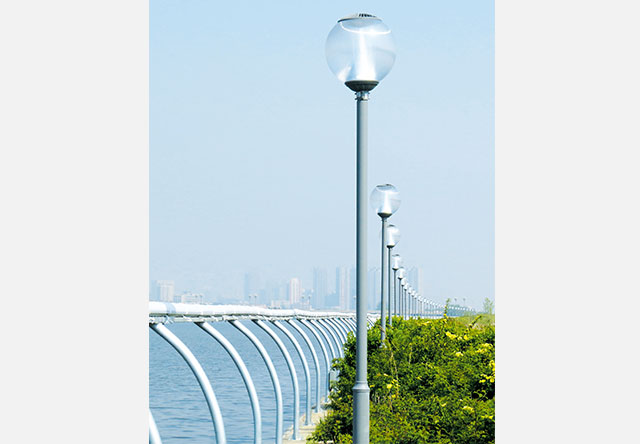

Urban roads and highways
Parking areas
Residential or industrial areas
Parks and commercial areas
Model 型號 |
Power 功率 |
Lamp 封裝 |
Luminous Flux 光通量 |
Packing(cm) 包裝尺寸 |
GW/N(kgs) 毛重/凈重 |
Installation height 安裝高度 |
---|---|---|---|---|---|---|
K-G325-16W | 10W/16W/20W | SMD | 2000 | 386*325 | 1.7 | 3-4M |
K-G400-40W | 20W/40W | SMD | 4000 | 400*485 | 4.2 | 4-6M |
K-G500-800W | 60W/80W | SMD | 8000 | 500*485 | 5.6 | 8-10M |
